Flat Coil with 4pin Mini XLR

Flat Coil with 4pin Mini XLR

Product Code:Flat Coil
Price: $60.00

Available Options

* Kevlar Color:

* XLR Pin Options:

* Volt & Wattage:

Qty:     - OR -   Add to Wish List Add to Compare

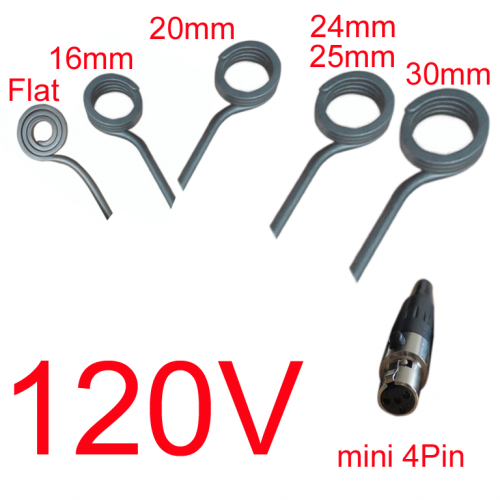

GIMIDO Flat Coils fit Infinity Ti Nail . Use NiChrome(Ni80Cr20) Resistance Wire.

This Coil ID9mm,OD25mm,Height is 4mm;120V100W or 230V150W;

Heat up 710F immediately, only 1 minutes. Long work Life Design.  Made in China.


Best NiChrome(Ni80Cr20) Resistance Wire.

  • Ni80Cr20 Resistance Wire
  • Pure MgO Tube insulation
  • SUS321 as sheath material
  • 120V100W or 230V150W
  • Flat Coil fit Infinity Ti Nail

Simple setup and operation

  • Flat Coil  has more transfer area with the Ti Nail.
  • 4mm Height fit Infinity Ti nail.
  • 4 Pin Mini XLR Plug
  • 1800mm Kevlar Length
  • Heat up to 710F fastly

XLR Diagram(Default fit HumboldtEnail Units & 710Electric Units)

  • Pin1 is power for coil
  • Pin2 is TC+
  • Pin3 is TC-;
  • Pin4 is power for coil


  • 180 days
