24V Coil with 4pin Normal XLR

24V Coil with 4pin Normal XLR

Brand:GIMIDO
Product Code:24V Coil with 4Pin Normal XLR
Availability:49
Price: $60.00

Available Options

* Coil Size:

* XLR Color Options:

* Kevlar Color:

Qty:     - OR -   Add to Wish List Add to Compare

GIMIDO 24V Coils for Battery units. Use NiChrome(Ni80Cr20) Resistance Wire.

Heat up 710F immediately, Less than 1 minutes. Long work Life Design.  Made in China.

Features:

Best NiChrome(Ni80Cr20) Resistance Wire.

  • Ni80Cr20 Resistance Wire
  • Pure MgO Tube insulation
  • SUS321 as sheath material
  • 24V50W to 70W, if you need customize wattage, please shoot notes to us, same price, but need to wait 2~5 days.

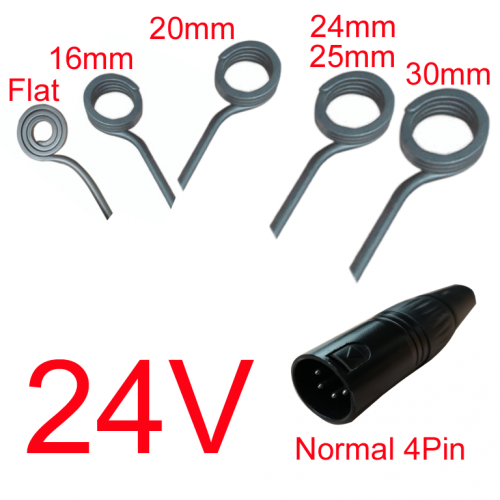

  • 16mm,20mm,24mm,25mm,30mm sizes available

Simple setup and operation

  • 4 Pin XLR Plug
  • 1500mm Kevlar Cord Length
  • Heat up to 710F fastly

XLR Diagram(Default fit D-Nail Units), Other Diagram available if you tell us.

  • Pin1,Pin2 are power for coil
  • Pin3 is TC+
  • Pin4 is TC-;

Warranty

  • 180 days
