120V Coil with 5pin Normal XLR

120V Coil with 5pin Normal XLR

Brand:GIMIDO
Product Code:120V Coil with 5Pin normal XLR
Availability:9909
Price: $60.00

Available Options

* Coil Size:

* Kevlar Color:

* XLR Color Options:

* Volt & Wattage:

Qty:     - OR -   Add to Wish List Add to Compare

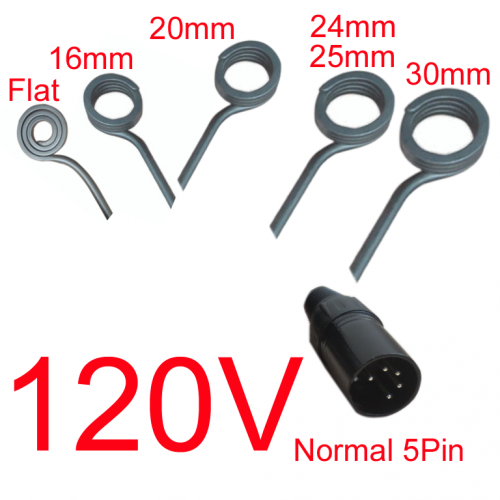

GIMIDO Regular Coils fit HE Ti Nail or Quartz Banger Nail. Use NiChrome(Ni80Cr20) Resistance Wire.

This Coil Diamter is 15.8mm,16mm or 20mm.Height is 12.7mm;120V100W or 230V150W;

Heat up 710F immediately, Less than 1 minutes. Long work Life Design.  Made in China.

Features:

Best NiChrome(Ni80Cr20) Resistance Wire.

  • Ni80Cr20 Resistance Wire
  • Pure MgO Tube insulation
  • SUS321 as sheath material
  • 120V100W or 230V150W, if you need customize wattage, please shoot notes to us, same price, but need to wait 2~5 days.
  • 10mm,15.8mm,16mm,20mm sizes available

Simple setup and operation

  • Regular Coil touch tight with the Ti Nail.
  • 12.7mm Height fit HE Ti nail.
  • 5 Pin XLR Plug
  • 1800mm Kevlar Length
  • Heat up to 710F fastly

XLR Diagram(Default fit D-Nail Units), Other Diagram available if you tell us.

  • Pin1,Pin2 are power for coil
  • Pin3 is TC+
  • Pin4 is TC-;
  • Pin5 is ground wire

Warranty

  • 180 days
