110V200W Coil with 5pin Normal XLR

110V200W Coil with 5pin Normal XLR

Product Code:110V200W Coil with 5Pin normal XLR
Price: $60.00
Qty:     - OR -   Add to Wish List Add to Compare

GIMIDO Regular Coils fit HE Ti Nail or Quartz Banger Nail. Use NiChrome(Ni80Cr20) Resistance Wire.

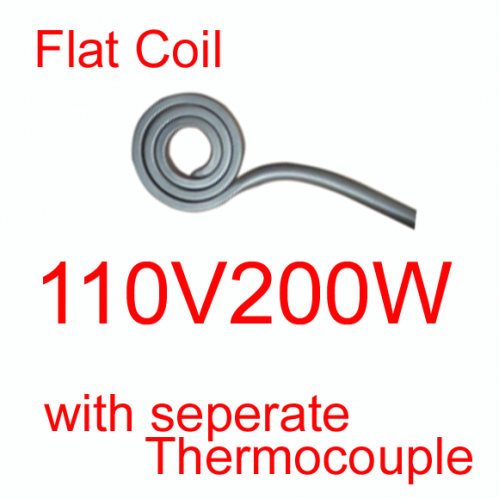

This Coil Out Diamter is 60mm 110V200W with seperate Thermocouple.

Heat up 710F immediately, Less than 1 minutes. Long work Life Design.  Made in China.


Best NiChrome(Ni80Cr20) Resistance Wire.

  • Ni80Cr20 Resistance Wire
  • Pure MgO Tube insulation
  • SUS321 as sheath material
  • 110V200W, if you need customize wattage, please shoot notes to us, same price, but need to wait 2~5 days.
  • 10mm,15.8mm,16mm,20mm,24mm,25mm,30mm sizes available

Simple setup and operation

  • Regular Coil touch tight with the Ti Nail.
  • 12.7mm Height fit HE Ti nail.
  • 5 Pin XLR Plug
  • 1800mm Kevlar Length
  • Heat up to 710F fastly

XLR Diagram(Default fit D-Nail Units), Other Diagram available if you tell us.

  • Pin1,Pin2 are power for coil
  • Pin3 is TC+
  • Pin4 is TC-;
  • Pin5 is ground wire


  • 180 days
