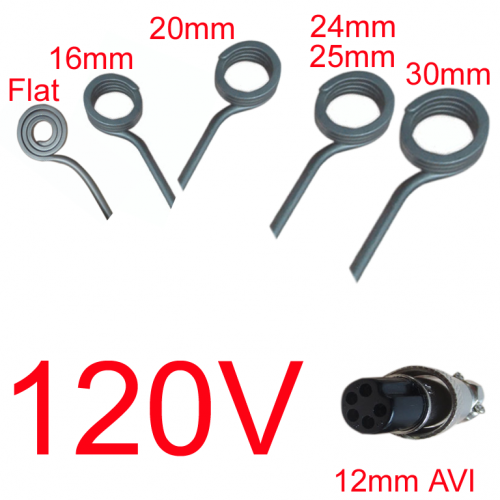

GIMIDO Flat Coils fit Infinity Ti Nail. Use NiChrome(Ni80Cr20) Resistance Wire.
This Coil ID9mm,OD25mm,Height is 4mm; 120V100W or 230V150W;
Heat up 710F immediately, Less than 1 minutes. Long work Life Design. Made in China.
Best NiChrome(Ni80Cr20) Resistance Wire.
- Ni80Cr20 Resistance Wire
- Pure MgO Tube insulation
- SUS321 as sheath material
- 120V100W or 230V150W, if you need customize wattage, please shoot notes to us, same price, but need to wait 2~5 days.
- Flat Coil fit Infinity Ti Nail
Simple setup and operation
- Flat Coil has more transfer area with the Ti Nail.
- 4mm Height fit Infinity Ti nail.
- 5 Pin Mini Avination Plug(Diameter 12mm)
- 1800mm Kevlar Length
- Heat up to 710F fastly
Avination Plug Diagram, Other Diagram available if you tell us.
- Pin1 pin2 are power for coil
- Pin3 is TC+
- Pin4 is TC-;
- Pin5 is Ground;
